Electronic Ignition





Vintage Racers | Motorcycles For Sale | Design | Featured Parts | NOS Parts | Classified Ads



Harness: Ground Wires

 Previous Photo Previous  Next Next Photo



      Instructions

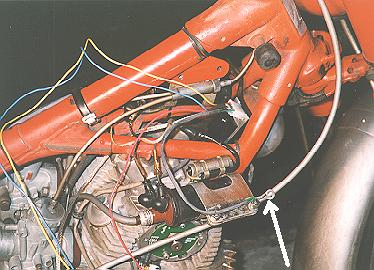

The arrow points to the two green wires (ground). They are cut to length, shod in shrink tubing, and soldered to a connector, which in turn goes around one of the horn bolts for excellent and local ground. Blue and yellow go to the coils, the red is the power lead.
