Squealing noise around stator and slow return to idles

Brickyard · Post by **Brickyard** » Sun Nov 08, 2015 7:10 pm

Ok, thinking out loud...

So...

Honda says CB77 cylinder sleeves should be 60mm and my cylinder sleeves measure 60mm.

My wiseco brand piston rings are so new they smell like similac.

Honda says my piston ring gap size is obnoxiously out of standard..

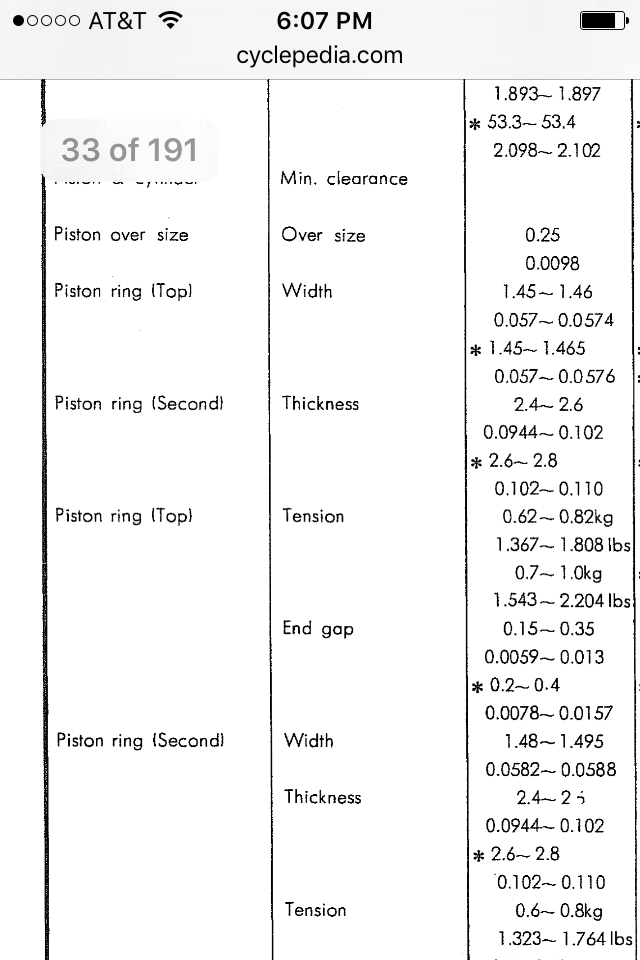

Crap... Once again, I was looking at the wrong specs! That damn asterisk! CB77's can have a ring gap between .2 and .4mm. My max is .28mm

Brickyard · Post by **Brickyard** » Sun Nov 08, 2015 7:15 pm

Folks, I swear it's not the beer; my wife has had the MacBook all day for homework and I'm stuck posting and researching with my iPhone!

Brickyard · Post by **Brickyard** » Sun Nov 08, 2015 7:26 pm

On to my second problem, stripped upper case thread.

Apparently I may have torqued down on a bolt that wasn't meant for this hole, and I'm 99% sure it was too short.

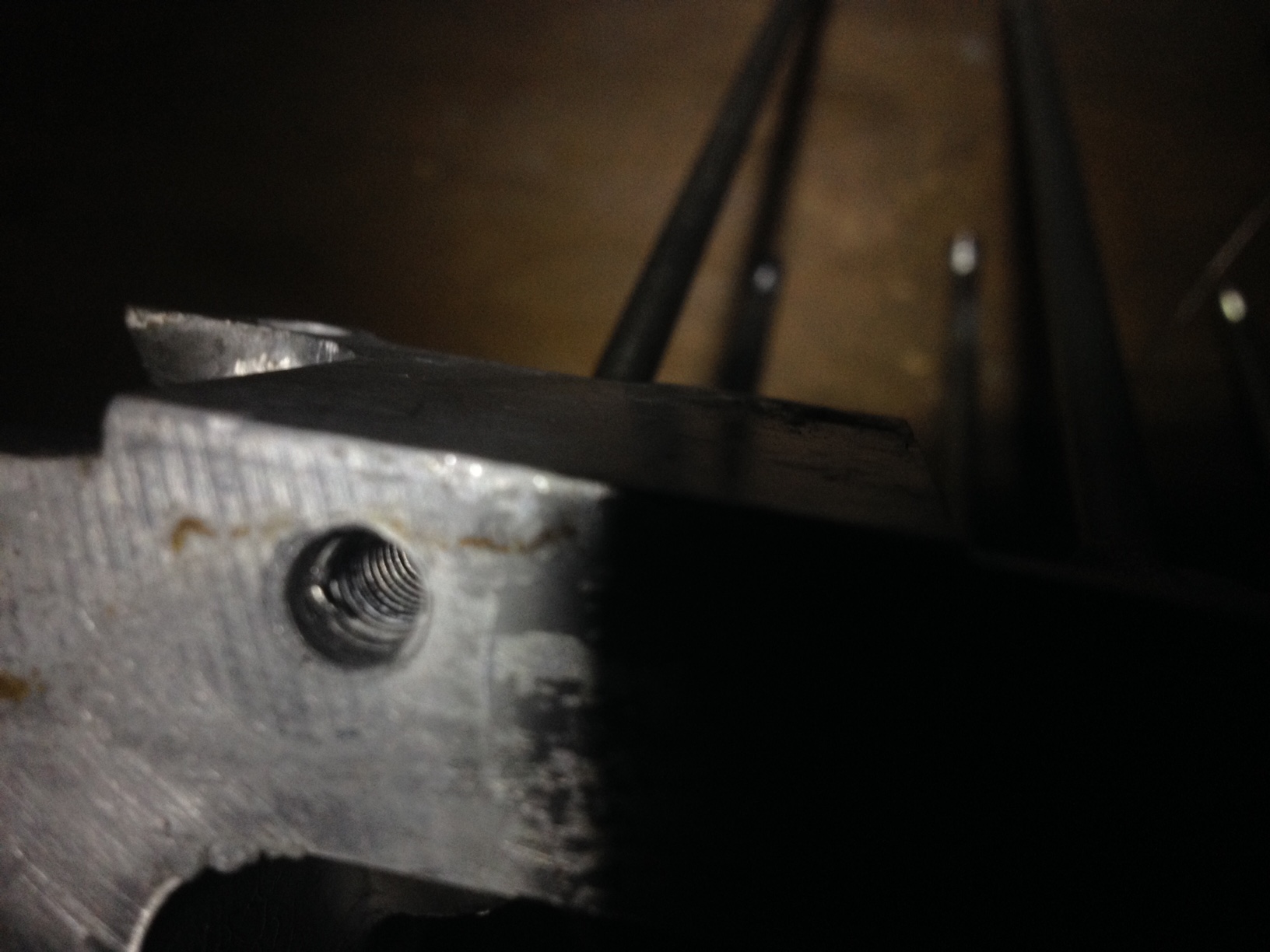

You can see where it's stripped, but behind there's still some meat. Metal bits are getting in the way of being able to screw a bolt in, so, first, I'll grind down the edge of the thread with a Dremel, and if that doesn't work, I'll use the helicoil.

Hopefully the Dremel works; the helicoil kit was $30!

Brickyard · Post by **Brickyard** » Sun Nov 08, 2015 7:34 pm

Crap, it was the beer because I screwed that all up...

.2-.4mm is not the same as .02-.04 inches.

Brickyard wrote:Ok, thinking out loud...

So...

Honda says CB77 cylinder sleeves should be 60mm and my cylinder sleeves measure 60mm.

My wiseco brand piston rings are so new they smell like similac.

Honda says my piston ring gap size is obnoxiously out of standard..

Crap... Once again, I was looking at the wrong specs! That damn asterisk! CB77's can have a ring gap between .2 and .4mm. My max is .28mm

Brickyard · Post by **Brickyard** » Sun Nov 08, 2015 7:45 pm

This is the piston kit I purchased:

http://www.classichondarestoration.com/ ... rod_5.html

LOUD MOUSE · Post by **LOUD MOUSE** » Sun Nov 08, 2015 9:50 pm

They sure are pretty.
Such a shame they can't be seen. ..................lm

Brickyard wrote:This is the piston kit I purchased:

http://www.classichondarestoration.com/ ... rod_5.html

Brickyard · Post by **Brickyard** » Sun Nov 08, 2015 10:03 pm

Yep.

So what do you think about the huge piston ring gap? The old Pistons and rings functioned fine and they were about the same size gap..

LOUD MOUSE wrote:They sure are pretty.
Such a shame they can't be seen. ..................lm

Brickyard wrote:This is the piston kit I purchased:

http://www.classichondarestoration.com/ ... rod_5.html
