Two types of Cylinder Head Caps both for 305?

Have a part and no Part Number? No idea where it's from and where it goes? Post a description and a photo here!
Post Reply
1941wld
honda305.com Member
Posts: 33
Joined: Sat Jun 26, 2010 9:02 am
Location: Baton Rouge, Louisiana

Cap Id

Post by 1941wld » Fri Dec 30, 2016 10:49 am

Just asked Mr Honda about this very issue the other day with your two caps and two others. Here are the pictures and his reply:

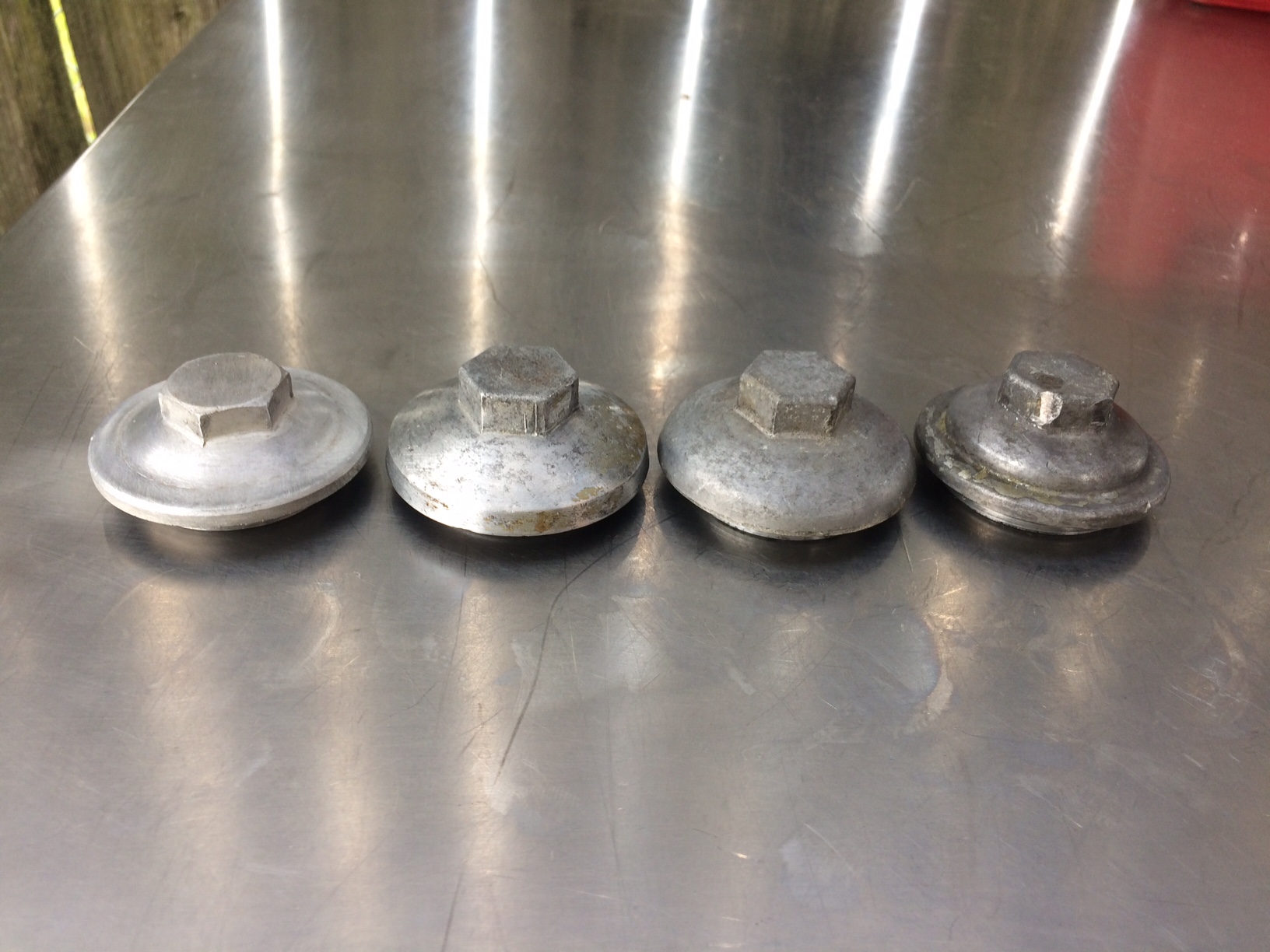

From left to right.....

the flat 268 coded cover usually seen on Super Hawks and Scramblers,

then the 250 code from the dry sump and first couple of years of wet-sump bikes,

then the 259 Dream covers, which the other ones superseded to.

The last one is seen only on 1967 bikes, but no known part number was added to the list.
Attachments
Top
LOUD MOUSE
honda305.com Member
Posts: 7817
Joined: Mon Aug 15, 2005 8:23 am
Location: KERRVILLE, TEXAS

Re: Cap Id

Post by LOUD MOUSE » Fri Dec 30, 2016 11:20 am

Three guesses who gave him that info.
He thought there was only 3 designs. .......................lm

1941wld wrote:Just asked Mr Honda about this very issue the other day with your two caps and two others. Here are the pictures and his reply:

From left to right.....

the flat 268 coded cover usually seen on Super Hawks and Scramblers,

then the 250 code from the dry sump and first couple of years of wet-sump bikes,

then the 259 Dream covers, which the other ones superseded to.

The last one is seen only on 1967 bikes, but no known part number was added to the list.
Top
1941wld
honda305.com Member
Posts: 33
Joined: Sat Jun 26, 2010 9:02 am
Location: Baton Rouge, Louisiana

Post by 1941wld » Fri Dec 30, 2016 12:16 pm

You the man, Ed!
I see my head is in Kerrville today. I wrapped it with 5 lbs of card board. Hope it gets to you in one piece
Thanks
1941wld
Top
LOUD MOUSE
honda305.com Member
Posts: 7817
Joined: Mon Aug 15, 2005 8:23 am
Location: KERRVILLE, TEXAS

Post by LOUD MOUSE » Fri Dec 30, 2016 2:18 pm

I'll let ya know when it arrives. ..................lm

1941wld wrote:You the man, Ed!
I see my head is in Kerrville today. I wrapped it with 5 lbs of card board. Hope it gets to you in one piece
Thanks
1941wld
Top
LOUD MOUSE
honda305.com Member
Posts: 7817
Joined: Mon Aug 15, 2005 8:23 am
Location: KERRVILLE, TEXAS

Post by LOUD MOUSE » Fri Dec 30, 2016 2:50 pm

The head just arrived.
Looks OK.
I sure want to get one of those water blasters.
I'll get to it tomorrow. .................lm

1941wld wrote:You the man, Ed!
I see my head is in Kerrville today. I wrapped it with 5 lbs of card board. Hope it gets to you in one piece
Thanks
1941wld
Top
