A wrench on the generator bolt usually works well.
G
'60 C77 '60 C72 '62 C72 Dream '63 CL72
'61 CB72 '64 CB77 '65 CB160
'66 Matchless 350 '67 CL77
'67 S90 '77 CB400F
-
jugger18
- honda305.com Member
- Posts: 117
- Joined: Mon Aug 10, 2009 10:01 am
- Location: Madison, WI
Post
by jugger18 » Fri Dec 05, 2014 1:56 pm
Ok and I assume turning anti(counter) clockwise so you don't remove the bolt? Do I need to worry about the clutch, I would think not as who cares if its engaged or not as their is no wheel to spin
-
G-Man
- honda305.com Member
- Posts: 5678
- Joined: Wed Mar 25, 2009 5:17 pm
- Location: Derby, UK
-
Contact:
Post
by G-Man » Fri Dec 05, 2014 2:23 pm
Clockwise will keep the bolt tight. No worries about the clutch.
G
'60 C77 '60 C72 '62 C72 Dream '63 CL72
'61 CB72 '64 CB77 '65 CB160
'66 Matchless 350 '67 CL77
'67 S90 '77 CB400F
-
jugger18
- honda305.com Member
- Posts: 117
- Joined: Mon Aug 10, 2009 10:01 am
- Location: Madison, WI
Post
by jugger18 » Fri Dec 05, 2014 3:14 pm
Oops, you are right. Clockwise it is. Thinking about it i could also insert something to catch the clip with through the tensioner port.
-
jugger18
- honda305.com Member
- Posts: 117
- Joined: Mon Aug 10, 2009 10:01 am
- Location: Madison, WI
Post
by jugger18 » Sat Dec 06, 2014 10:56 am

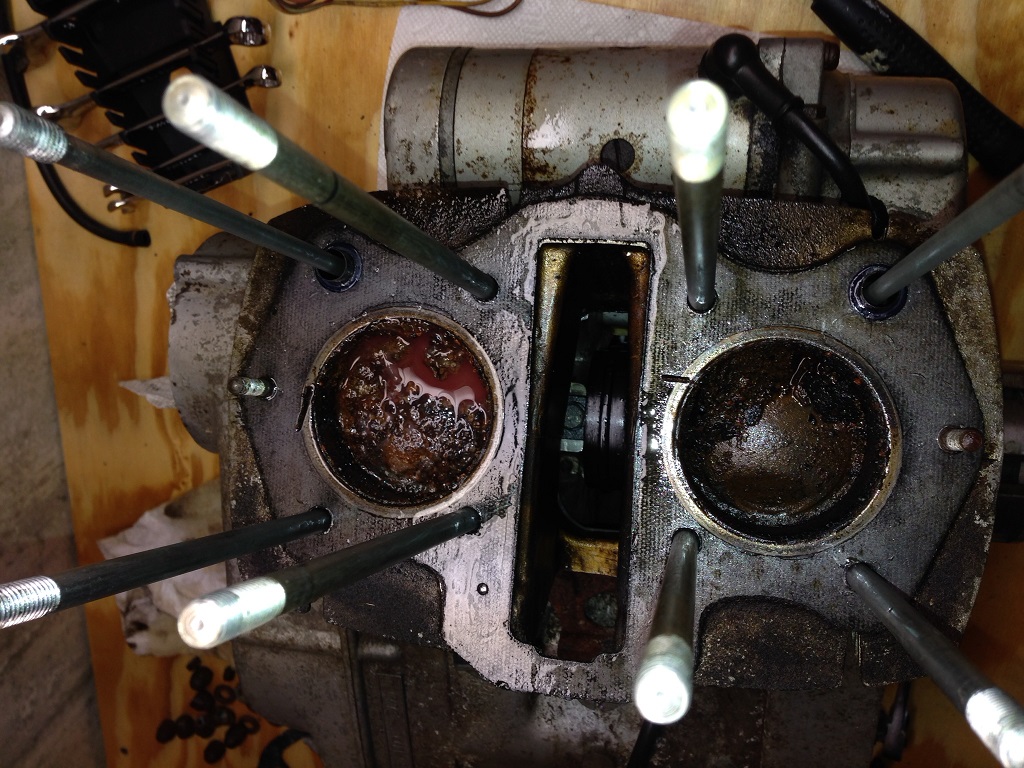

Master clip is out and head is off. Ended up using 2 precision pc screwdrivers. One through the top and one through the tensioner port. Clip came off and stuck to the screwdriver (guess it was magnetic). Same with the plate. Popped the link out and it and the chain slid to the bottom, tipped the engine and out the oil filter hole they came. Pistons are another story. Cylinders were filled with dirt/rust/and a bit of diesel the previous owner used to try and loosen it up. I soaked up the diesel, shop vac'd and picked out ost of the dirt, filled them back up with PB blaster. What can I use to gently remove the caked dirt from the cyl walls? Scotchbrite pad?
-
Attachments
-
- Pistons.jpg (306.84 KiB) Viewed 1640 times
-

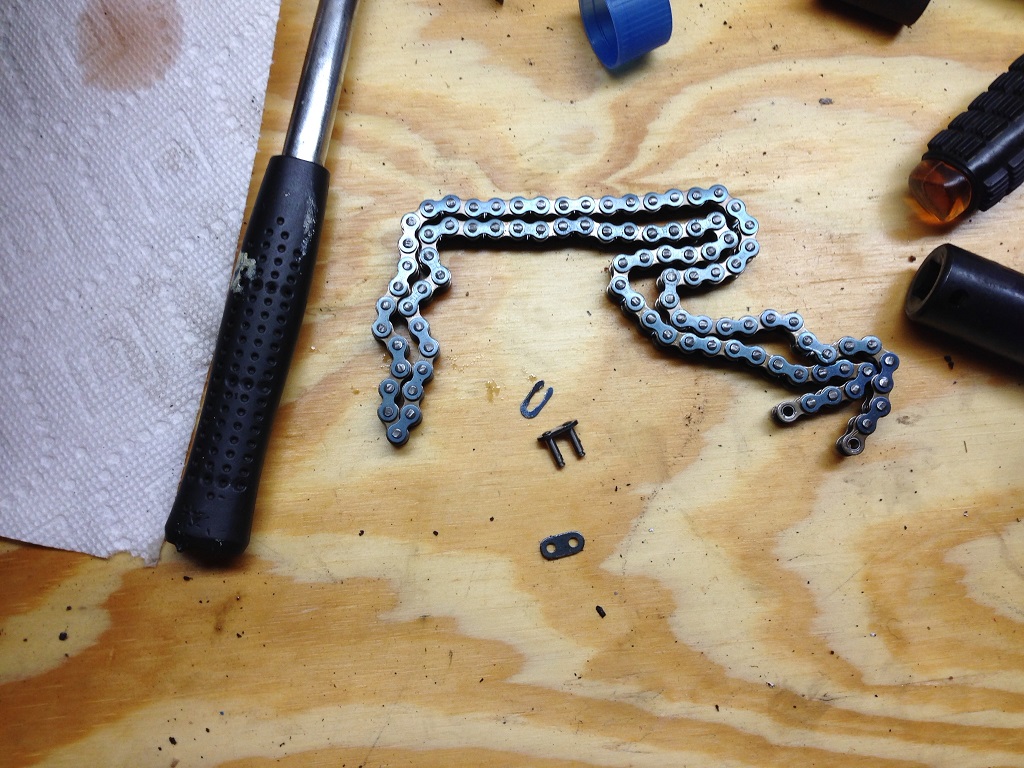

- cam chain and link.jpg (301.79 KiB) Viewed 1640 times
-
jugger18
- honda305.com Member
- Posts: 117
- Joined: Mon Aug 10, 2009 10:01 am
- Location: Madison, WI
Post
by jugger18 » Sat Dec 06, 2014 10:58 am
There other thing I was thinking of trying was picking up some evapo-rust and filling the cylinders with that. Would that be a better option?
-
ahenthus
- honda305.com Member
- Posts: 92
- Joined: Tue Jan 29, 2013 10:25 am
- Location: Upstate SC
Post
by ahenthus » Sat Dec 06, 2014 9:31 pm
Evapo-Rust would be as good as anything. I'm a believer in Kroil but in this case Evapo-Rust, in addition to penetrating and lubricating, should convert the rust too. I'm assuming it is rust that has it locked up. I use Evapo-Rust in my ultrasonic to derust and decrud with pretty good results.
