1964 CA77 Restoration

Seadog · Post by **Seadog** » Fri Dec 02, 2016 10:43 am

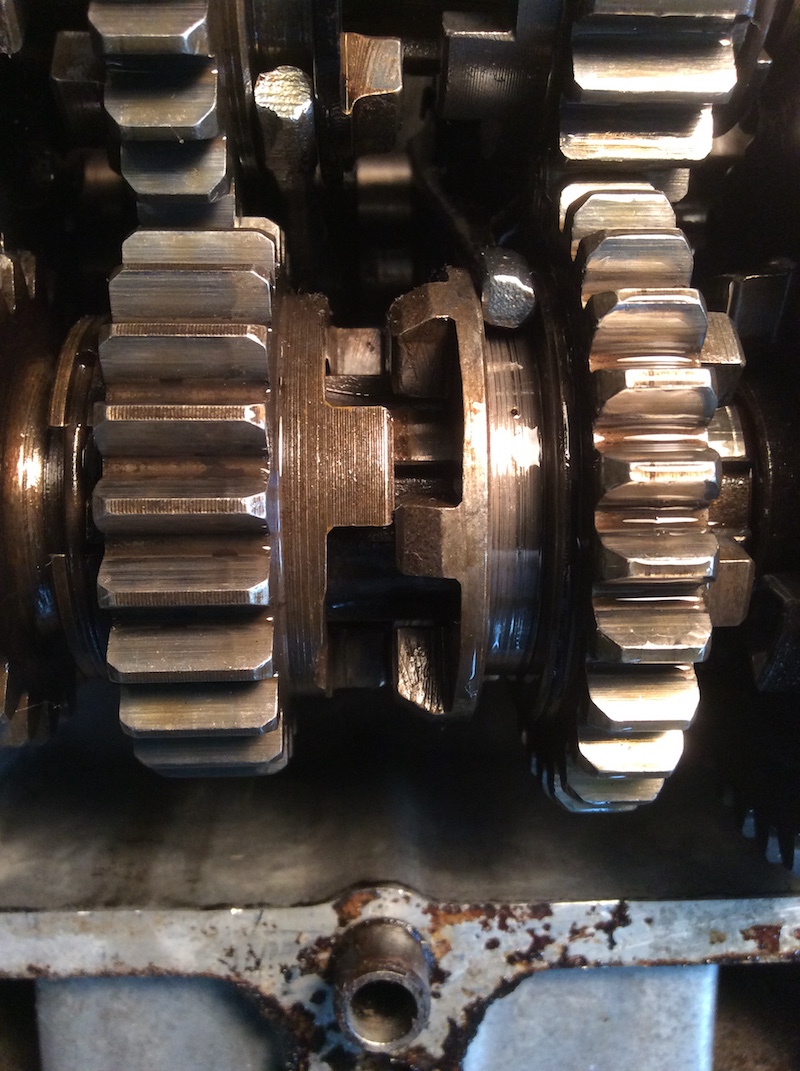

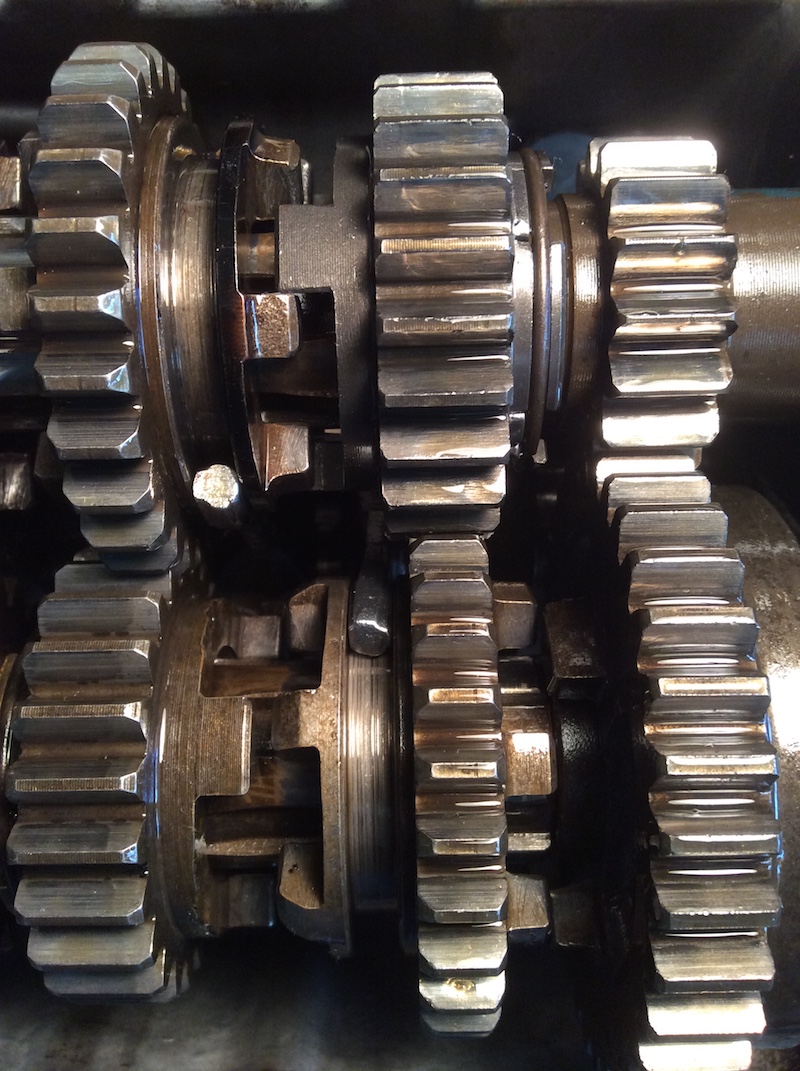

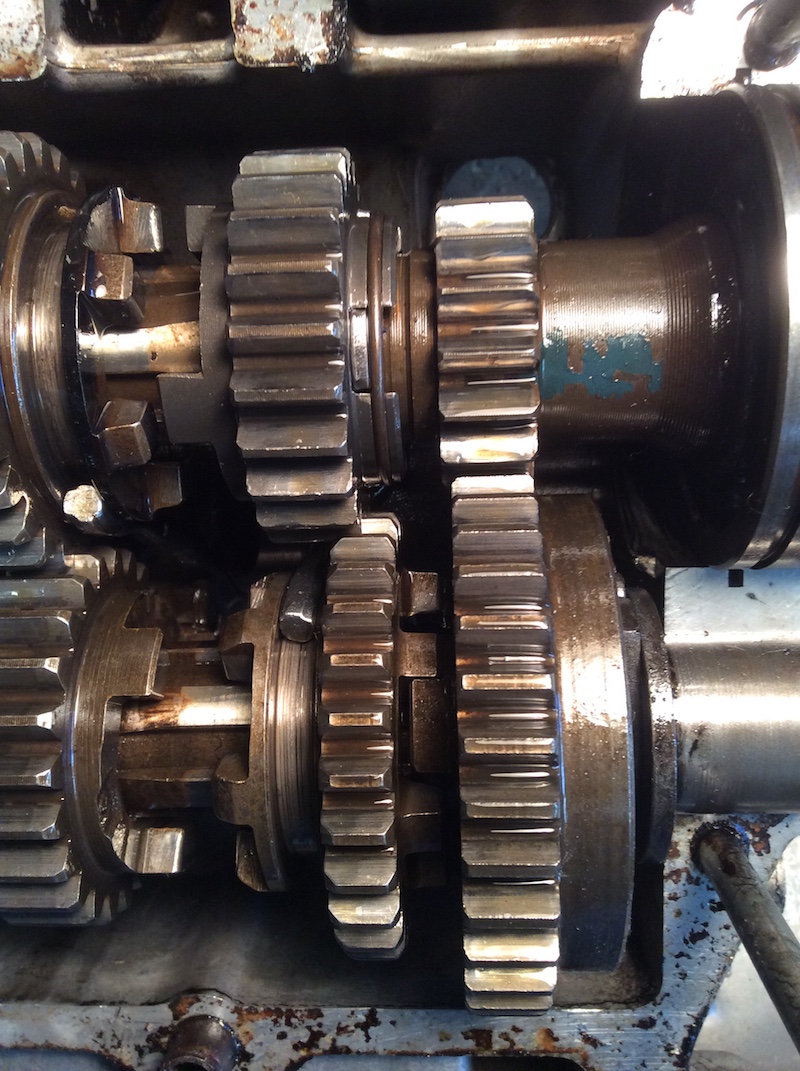

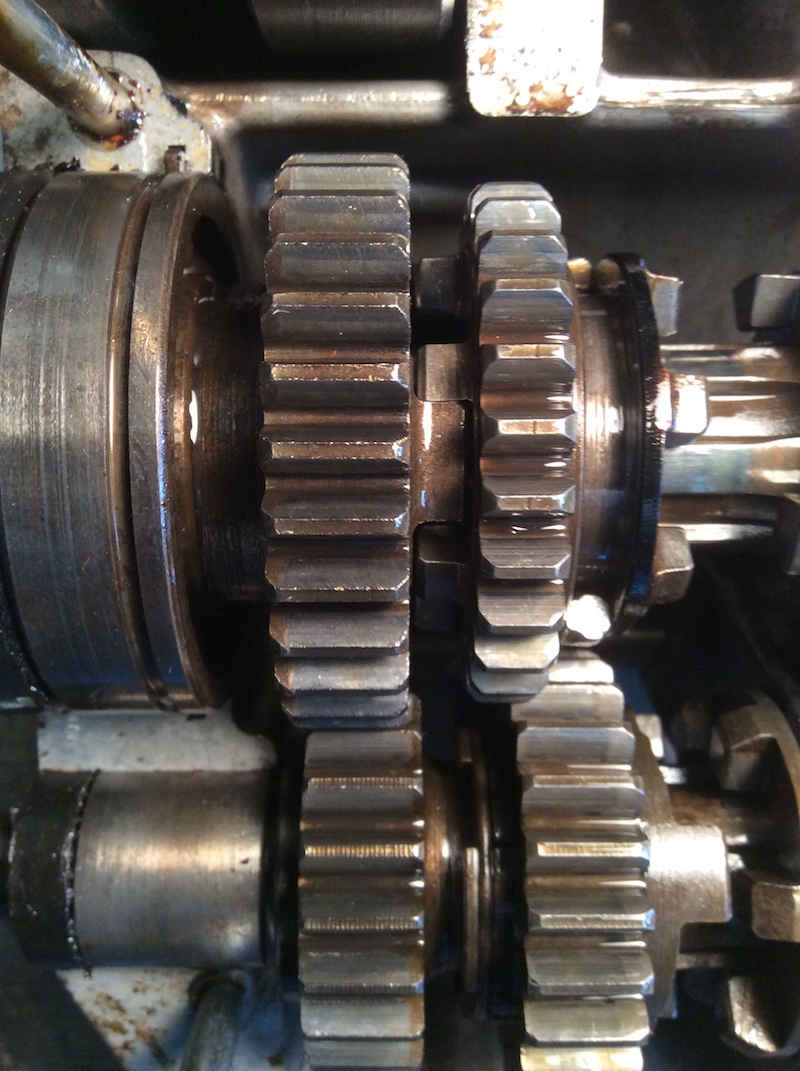

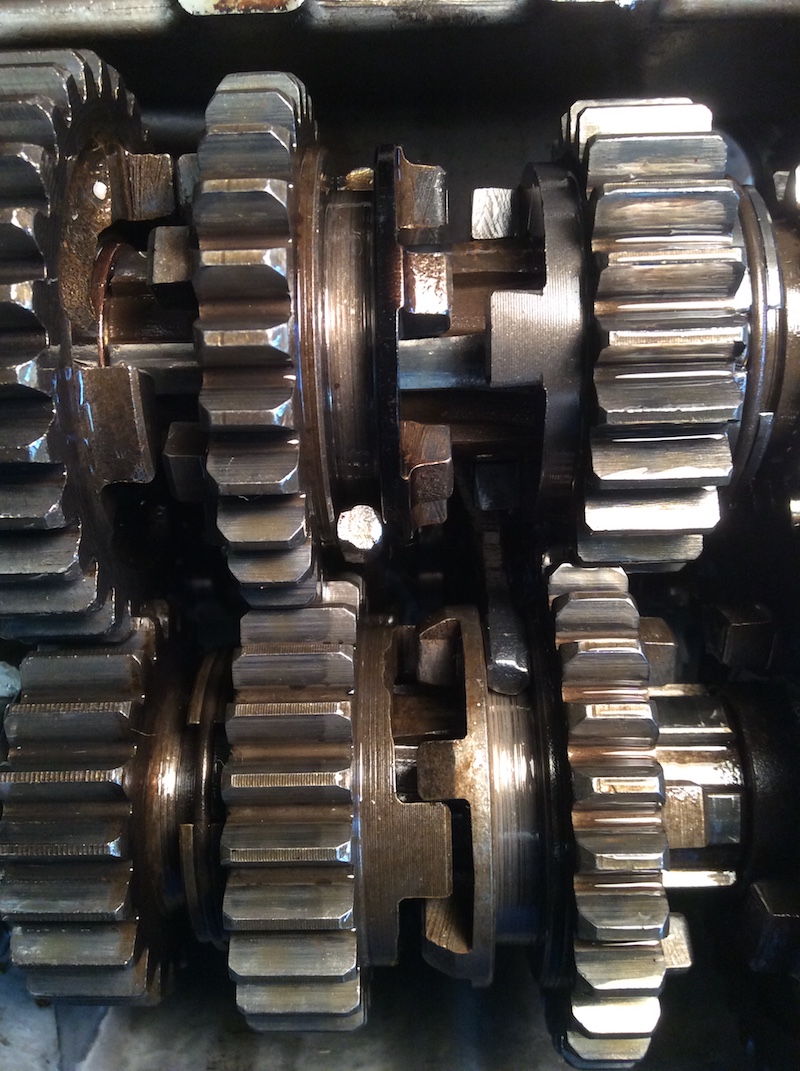

Here are the gear engagement photos. Note the 2nd gear dogs engagement and the 3rd gear jamb. I believe I'll need the offset cotters to increase the 2nd gear dog engagement, but do I go with the 0.5 mm or the 1.0 mm cotters and do I need 2 or all 4?

LOUD MOUSE · Post by **LOUD MOUSE** » Fri Dec 02, 2016 12:27 pm

Call me about this.
The area where the PAWL engages always has flat edges. .................lm

Seadog wrote:Well, time to stop making excuses and get back on track with this engine or this will never get done. I've been dreading what I'll find when looking at the transmission because I know nothing about gears, but the procrastination has to stop.

Determined to make progress, last evening, I cracked the cases and took a look at what I have. Pics below of what I found.

I see no obvious damage to the gear teeth - no missing teeth, no cracks, no rounding, no bits of metal. There is a lot of slop and the dog engagement is slender. I'm thinking I will need the offset cotters. I'll post photos of each gear engagement soon. There sometimes seems to be a jam in 3rd and/or 4th when the dogs don't engage, but rather butt against each other. I'm not sure what that's all about.

The teeth inside the first gear on the counter shaft are badly damaged. I doubt it would have been possible for the previous owners to kick start the engine as I can only get engagement on a few spots. Also, the pawl spring is there, but does not really push the pawl forward. Looks as if I'll be ordering a new low gear, but I cannot find a NOS pawl yet.

Seadog · Post by **Seadog** » Fri Dec 02, 2016 3:42 pm

Thanks, LM. I will call.

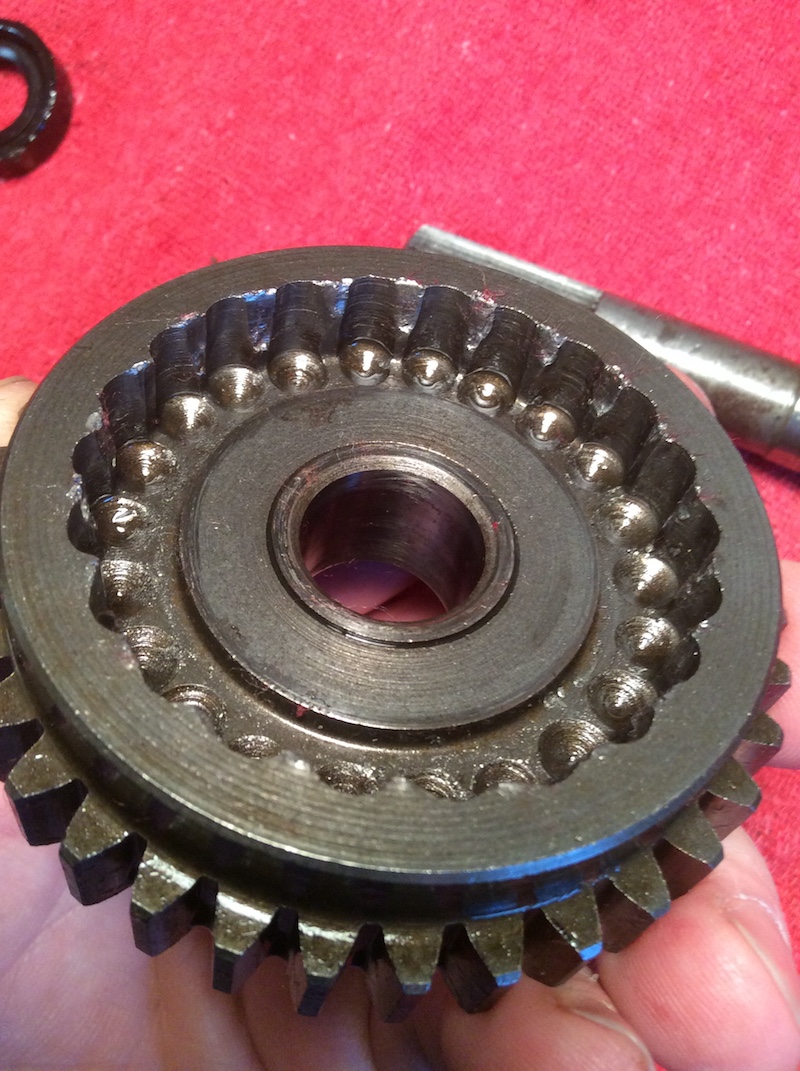

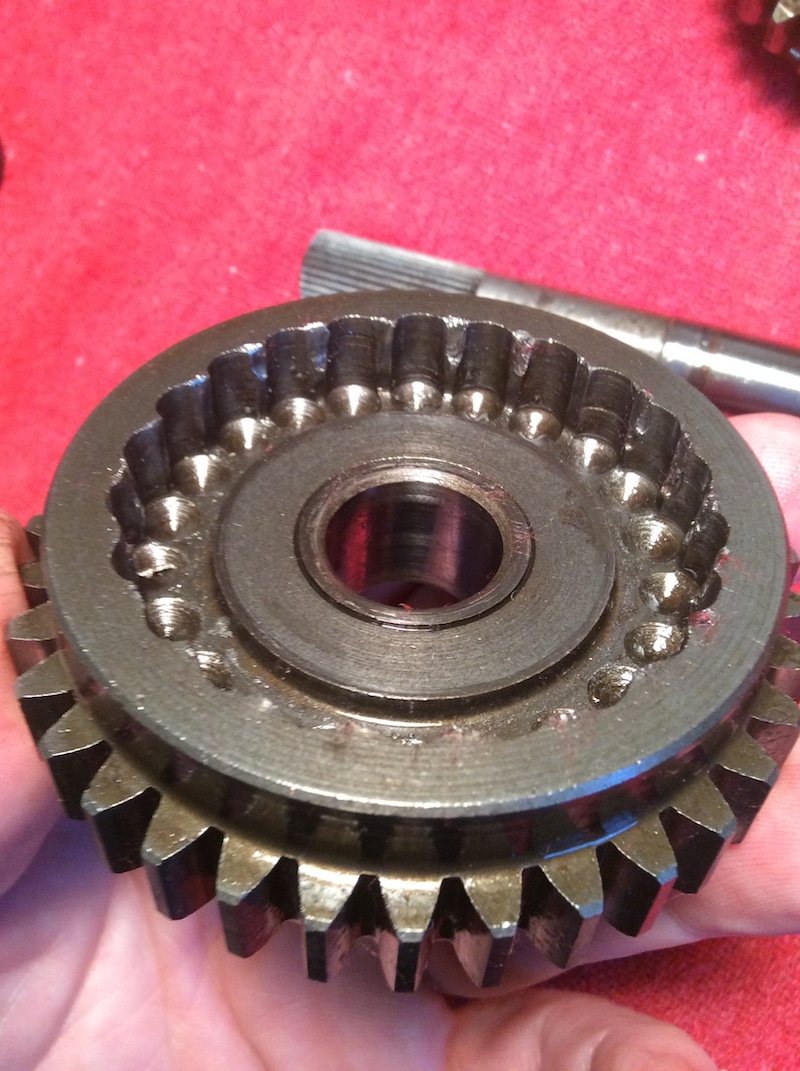

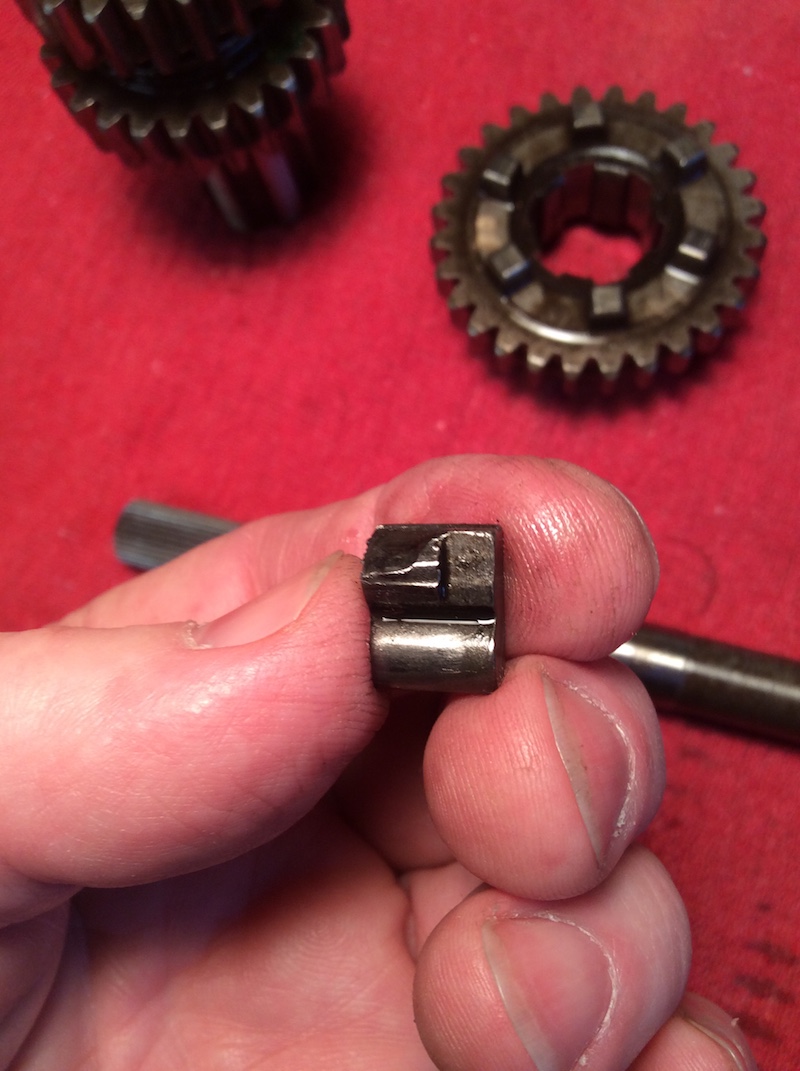

I took the countershaft out and removed the 1st gear. Below are some photos. Chewed up a bit? The starter spindle isn't looking great either.

LOUD MOUSE · Post by **LOUD MOUSE** » Fri Dec 02, 2016 5:21 pm

That's UGLY!
Call me as I have parts. .............lm

Seadog wrote:Thanks, LM. I will call.

I took the countershaft out and removed the 1st gear. Below are some photos. Chewed up a bit? The starter spindle isn't looking great either.

Seadog · Post by **Seadog** » Fri Dec 02, 2016 5:38 pm

Thanks, LM, I will call. I'm also looking for the crankcase bolts - not a single one was with the engine - and I'm not sure all of the knock pins are there. I only see 2, one fore and one aft.

(1) 6x40 - 92000-06040
(2) 6x50 - 92000-06050
(1) 6x70 - 92101-06070 0A
(1) 6x75 - 92000-06075

LOUD MOUSE wrote:That's UGLY!
Call me as I have parts. .............lm

LOUD MOUSE · Post by **LOUD MOUSE** » Fri Dec 02, 2016 6:08 pm

I'm sure I have them. ...............lm

Seadog wrote:Thanks, LM, I will call. I'm also looking for the crankcase bolts - not a single one was with the engine - and I'm not sure all of the knock pins are there. I only see 2, one fore and one aft.

(1) 6x40 - 92000-06040
(2) 6x50 - 92000-06050
(1) 6x70 - 92101-06070 0A
(1) 6x75 - 92000-06075

LOUD MOUSE wrote:That's UGLY!
Call me as I have parts. .............lm

Seadog · Post by **Seadog** » Sat Dec 03, 2016 4:28 pm

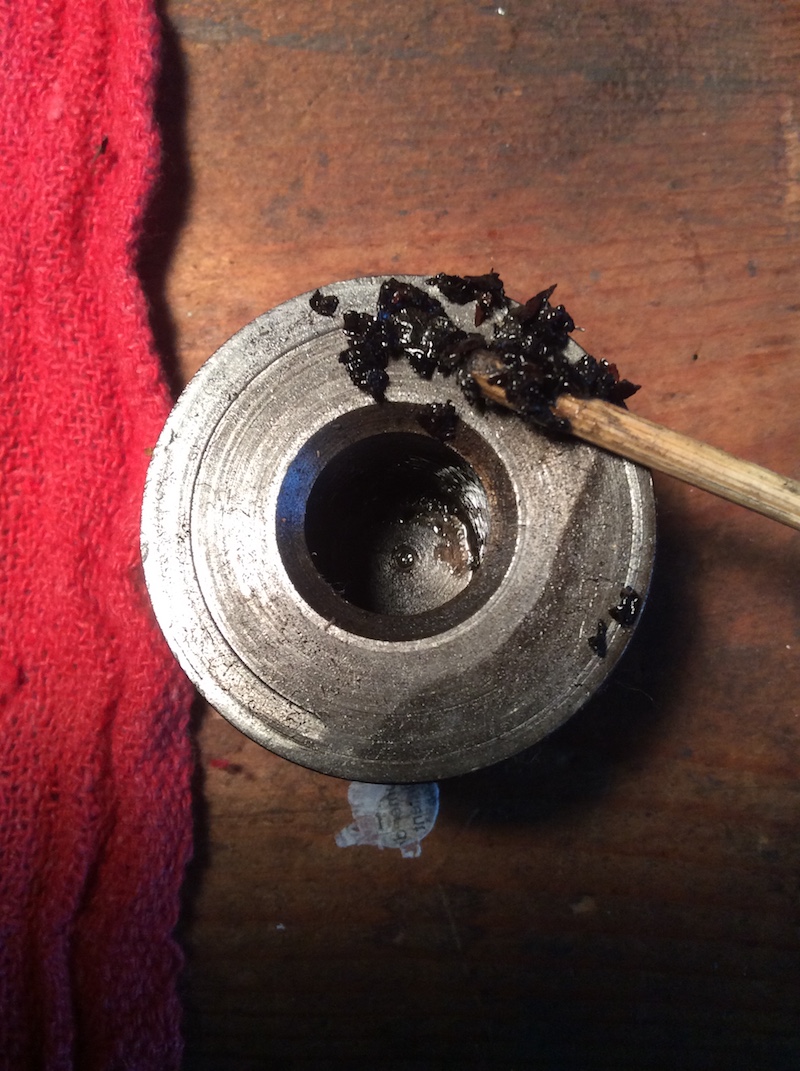

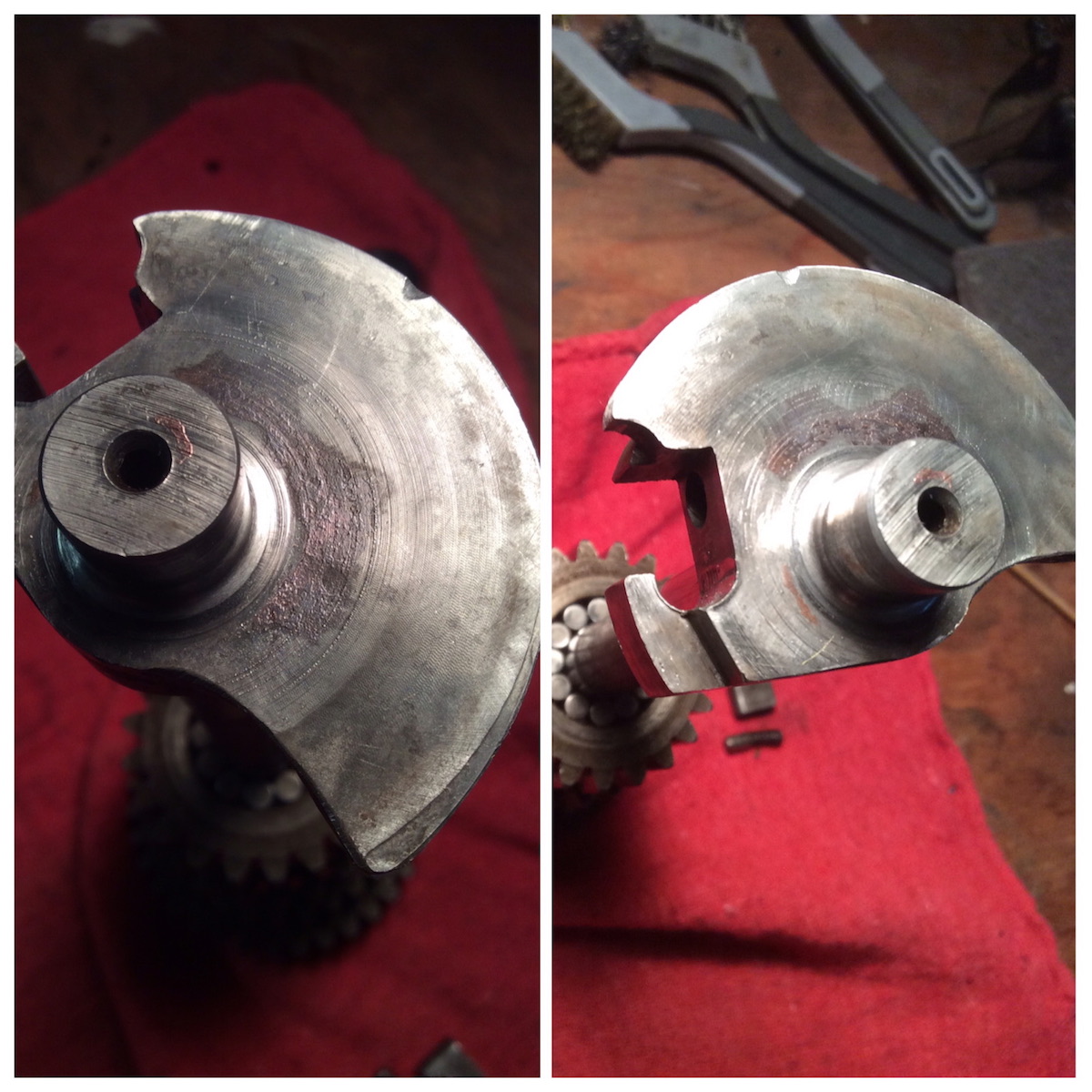

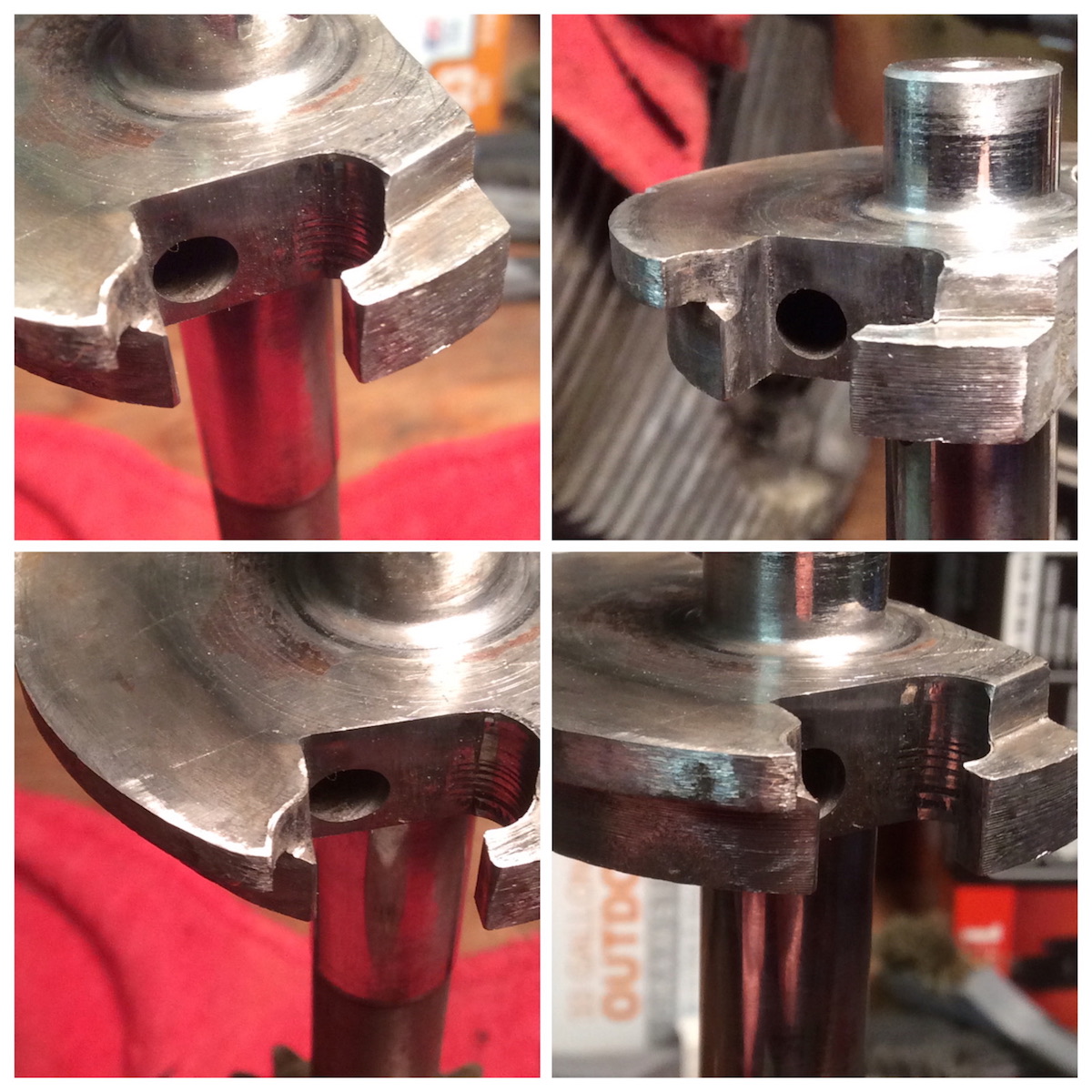

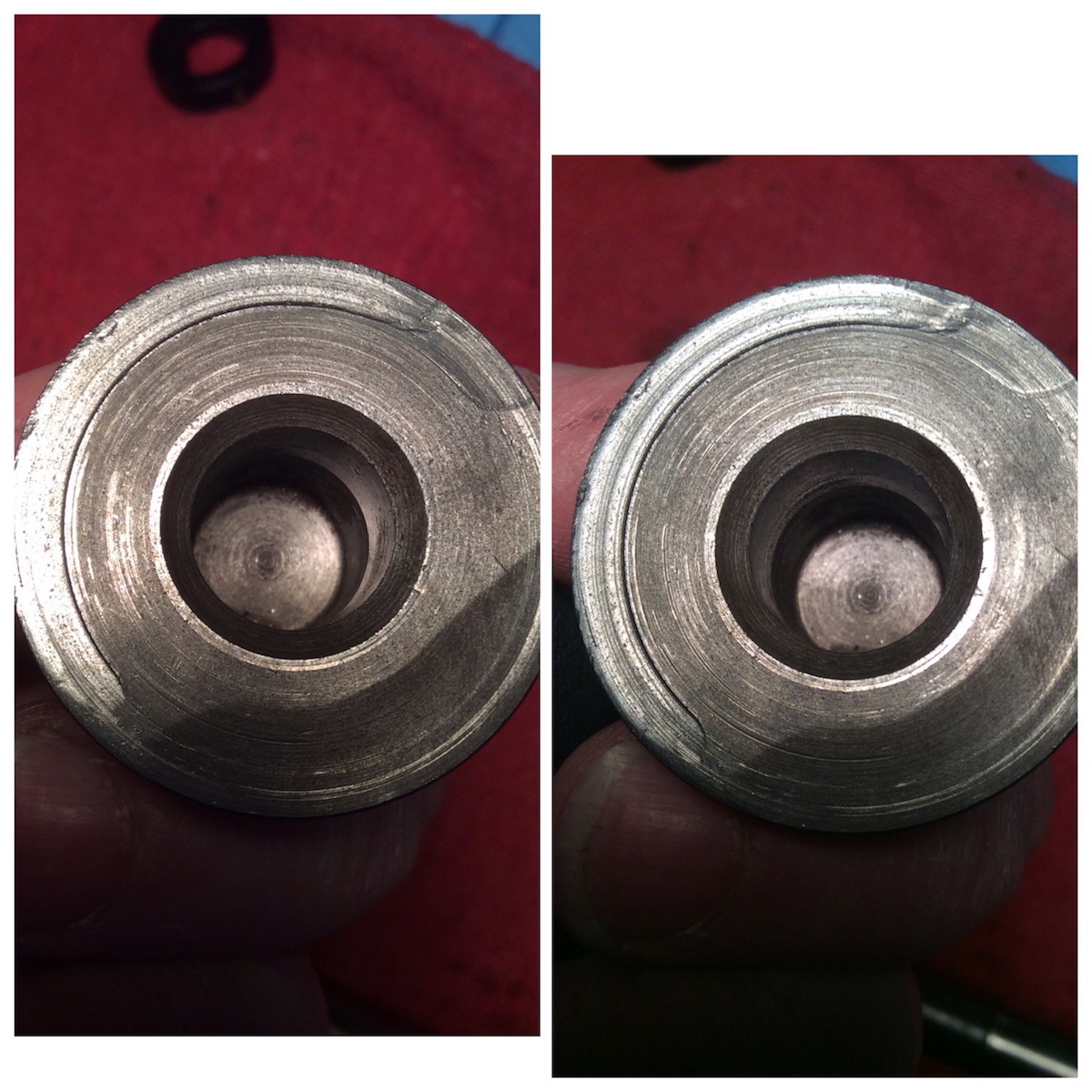

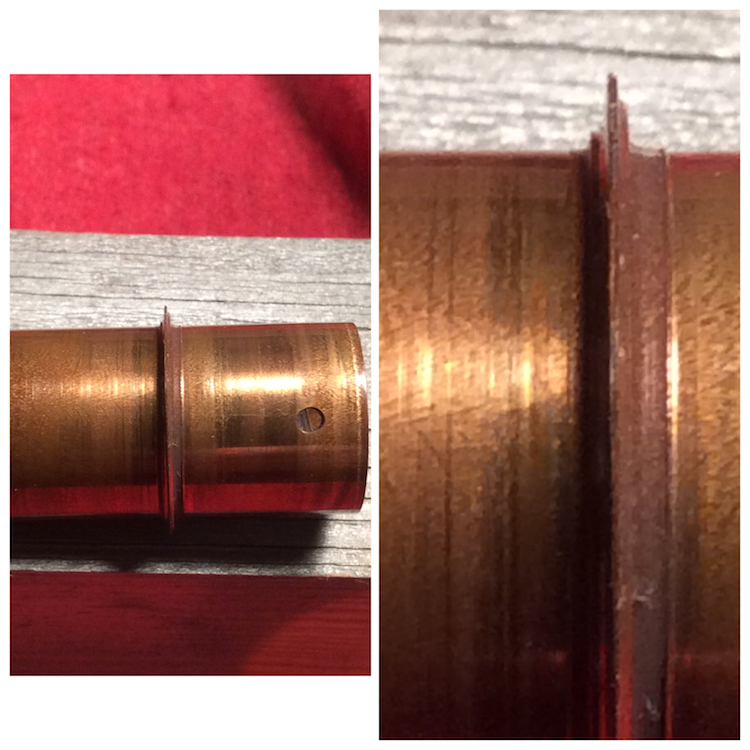

Nice talking to you today LM, as always. Below are the photos of Bushing C, the "top hat" spindle end bushing and the pawl end of the starter spindle. I hope the images are clear enough. There was quite a bit of copper showing at the pawl end of the starter spindle and bushing C looks quite worn. I'm looking forward to hearing your opinion.
