Missing lots of parts for 64 CB77

sixtiescycle · Post by **sixtiescycle** » Sun May 28, 2017 12:35 pm

All parts for Clutch Lifter/Adjuster/Fixing Arm>>>>> All parts that fit into the Kickstart cover? I have these
Kick Starter Gear (mine's missing a tooth)>>>>>>>>>>>>Which one? I have both.

Right Crankcase Cover (mine has a huge crack in it)
key/ignition switch
Rear brake light switch and spring
Right Front Air Filter Stay

Left Rear Air Filter Stay>>>>>>>>>>>I have this

Left and Right Air Filter Tubes

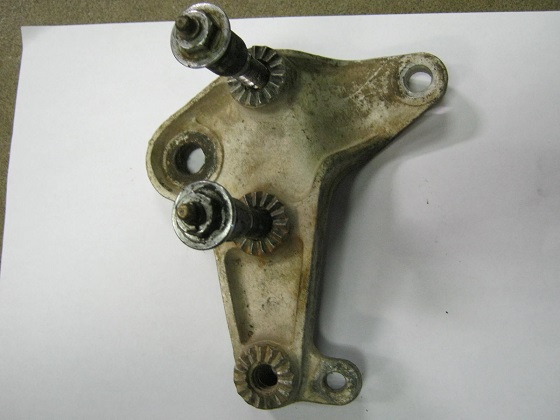

Right Footrest Bracket Arm, swing arm dust cover and lock nut>>>>>>>If you are referring to the cast aluminum bracket that the foot pegs bolt to I have this and the lock nut.

Both Step Arm Bolts with Grease fittings >>>>>>>I have these

Left Foot Peg>>>>>>>> If you are referring to the metal peg not the rubber I have this

Rubber for Tank Mounts Front and Back>>>>>>>>>I have these

Battery Grounding Cable
Battery Wire Harness A
Rear Shock (mine only has one)

I'm still searching through parts for some of the items

snootch21 · Post by **snootch21** » Sun May 28, 2017 2:08 pm

sixtiescycle wrote:All parts for Clutch Lifter/Adjuster/Fixing Arm>>>>> All parts that fit into the Kickstart cover? I have these

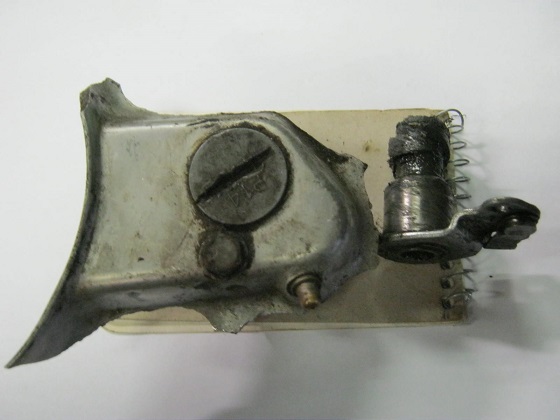

Yes, I'm missing all of the parts that fit into the kickstart cover. Lifter Thread, Adjuster, Adjuster Fixing Piece with hex bolt, and Clutch Lever Spring.

Kick Starter Gear (mine's missing a tooth)>>>>>>>>>>>>Which one? I have both.
The one with the threads that attaches to the kick pedal.

Right Crankcase Cover (mine has a huge crack in it)
key/ignition switch
Rear brake light switch and spring
Right Front Air Filter Stay

Left Rear Air Filter Stay>>>>>>>>>>>I have this
Awesome! All of mine were missing, but I've acquired two of the four pieces, right rear and left front.

Left and Right Air Filter Tubes

Right Footrest Bracket Arm, swing arm dust cover and lock nut>>>>>>>If you are referring to the cast aluminum bracket that the foot pegs bolt to I have this and the lock nut.
Yes, I need both of those parts.

Both Step Arm Bolts with Grease fittings >>>>>>>I have these

Left Foot Peg>>>>>>>> If you are referring to the metal peg not the rubber I have this
Correct, I'm missing the actual metal peg.

Rubber for Tank Mounts Front and Back>>>>>>>>>I have these

Battery Grounding Cable
Battery Wire Harness A
Rear Shock (mine only has one)

I'm still searching through parts for some of the items

Thanks a lot for taking the time to look for the parts. I appreciate your help. If it would help, I can provide part numbers, too. Once you're done looking for all of them, let me know how much I owe you and we can work it out. The more I research, the more parts I'm finding that I need. Haha!

Joe

sixtiescycle · Post by **sixtiescycle** » Sun May 28, 2017 2:50 pm

Looks like I've found a RH front filter stay. I have a brake switch with the spring and the mount that attaches it to the brake cable, the wires have been cut though. Easy enough fix but I may run into another. Still digging through stuff..................................

When I get all the pieces together I will post pictures.

snootch21 · Post by **snootch21** » Tue May 30, 2017 11:57 am

sixtiescycle wrote:Looks like I've found a RH front filter stay. I have a brake switch with the spring and the mount that attaches it to the brake cable, the wires have been cut though. Easy enough fix but I may run into another. Still digging through stuff..................................

When I get all the pieces together I will post pictures.

Again, thanks for your time. I'm very good at soldering, so I don't think the wires missing from the brake switch is an issue.

Hope you had better weather in Oregon than we did in Massachusetts this weekend. Cold and rainy...

Joe

sixtiescycle · Post by **sixtiescycle** » Tue May 30, 2017 12:07 pm

snootch21 wrote:
sixtiescycle wrote:Looks like I've found a RH front filter stay. I have a brake switch with the spring and the mount that attaches it to the brake cable, the wires have been cut though. Easy enough fix but I may run into another. Still digging through stuff..................................

When I get all the pieces together I will post pictures.
Again, thanks for your time. I'm very good at soldering, so I don't think the wires missing from the brake switch is an issue.

Hope you had better weather in Oregon than we did in Massachusetts this weekend. Cold and rainy...

Joe

I'm still digging! I'll try and post some pics shortly of what I've got so far. I'm thinking I have an ignition switch too but haven't run across it yet. Beautiful weekend here but today is back to normal, Oregon rain!

sixtiescycle · Post by **sixtiescycle** » Tue May 30, 2017 1:09 pm

Parts pictures

snootch21 · Post by **snootch21** » Tue May 30, 2017 3:55 pm

I think the rear air filter bracket in your picture is the one that I already have.
