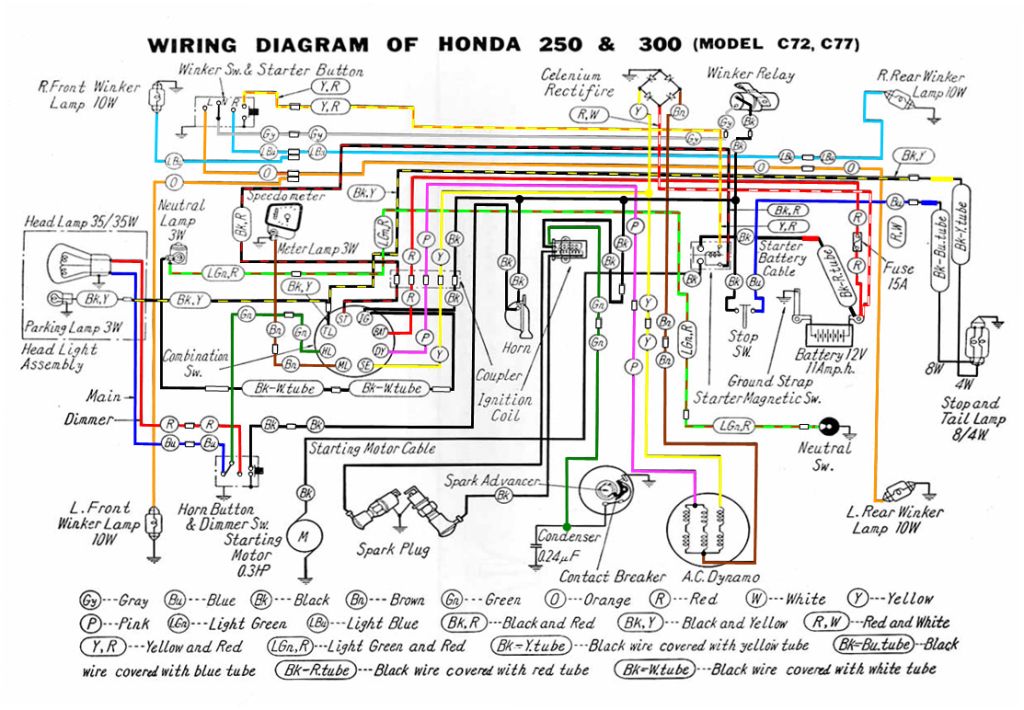

Dreams' colour wiring diagram & combi switch matrix

[e3steve]

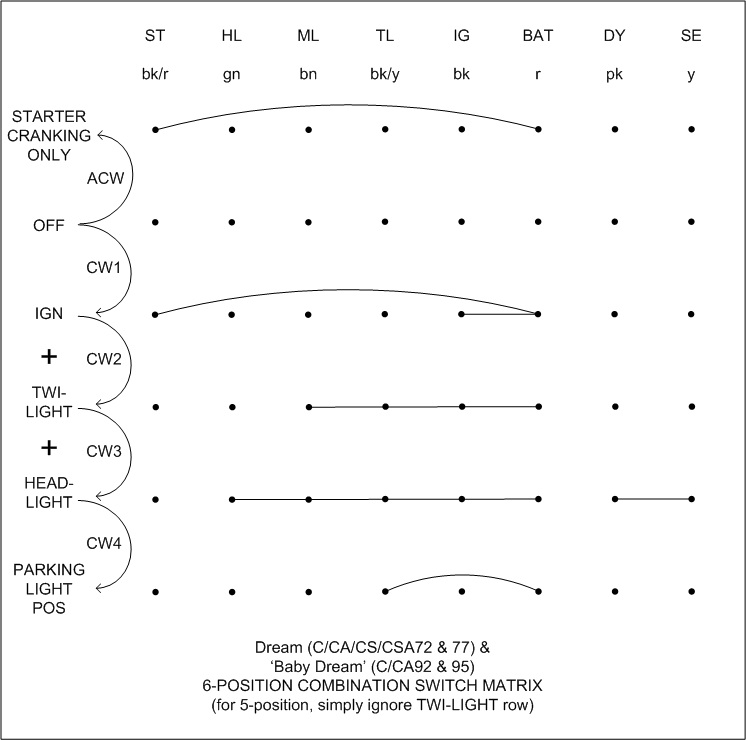

To simplify an understanding of how the combination (ignition / light switch) switches what. Not definitive, as some market requirements may vary, but a reasonable indication.

The matrix drawing is now revised, showing the correct internal connections to both the IGnition circuits and the STarter solenoid.

EDIT: Please post any Qs under a separate subject heading.

[dlobby12]

thanks, but where does the male plug go.

[e3steve]

thanks, but where does the male plug go.

Sorry, missed your question as I don't receive notifications for this topic 'sticky'; it's For Information Only.

Please post your Q in a new subject.

[dajimraper]

thanks, but where does the male plug go.

I agree with this opinion.
