Wiring Issue

Post by RRIXX » Thu Sep 22, 2016 1:48 pm

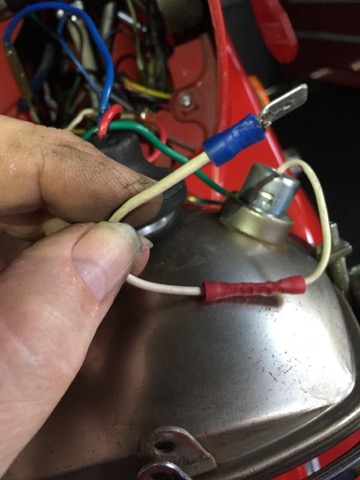

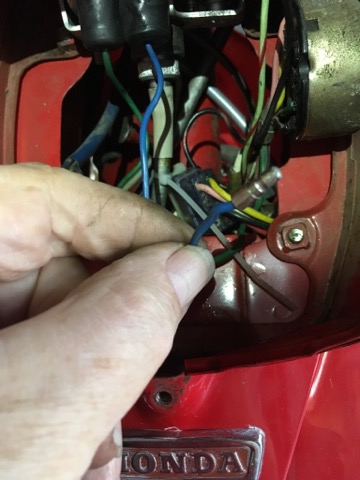

Inside my headlight case I have a couple of extra wires not connected. The first one is the wire coming from the headlight parking light and the second looks like it might be the light for the speedometer. Does anyone know where these go?
Attachments
Top
User avatar
Seadog
honda305.com Member
Posts: 1272
Joined: Thu Dec 25, 2014 9:54 am
Location: Cape Cod, MA

Post by Seadog » Thu Sep 22, 2016 4:19 pm

You need to study the wiring diagram for your Dream. See
http://www.honda305.com/forums/ca77-wir ... t2633.html
Top
revlover
honda305.com Member
Posts: 169
Joined: Sun Jul 12, 2015 5:06 am
Location: Shepherdsville, KY

Post by revlover » Thu Sep 22, 2016 9:30 pm

The blue wire appears to be the high beam indicator. Look at your headlight wires there may be a double bullet connector on the blue wire where it goes. The same is probably true for the parking light. Look for a black/yellow wire coming from the ignition switch.
