timing and alignment during rotor and stator assembly

Post by big-b » Sat May 07, 2011 8:32 pm

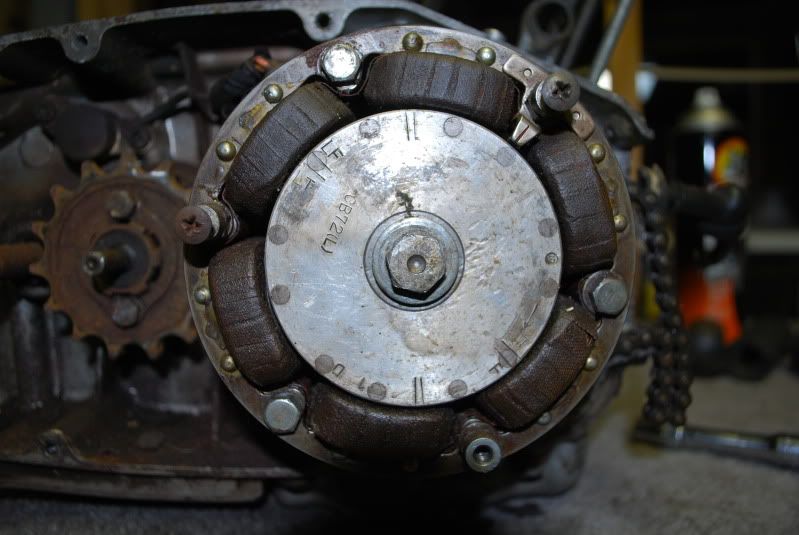

Is there any particular alignment to be concerned about during assembly of the rotor and stator? The picture shows the relationship of the two parts before disassembly.

Top
48lesco
honda305.com Member
Posts: 721
Joined: Tue Mar 06, 2007 1:45 pm
Location: Olmsted Twp, Ohio

Post by 48lesco » Sat May 07, 2011 9:47 pm

I think it's impossible to get it wrong. The rotor is keyed to the shaft, and the stator only fits properly in the correct orientation.
Top
e3steve
h305 Moderator
Posts: 2601
Joined: Fri Oct 31, 2003 1:38 pm
Location: Mallorca, Spain & Warsash, UK

Post by e3steve » Mon May 09, 2011 1:32 am

48lesco wrote:I think it's impossible to get it wrong. The rotor is keyed to the shaft, and the stator only fits properly in the correct orientation.
100% correct.....
Top
