1966 CL77 sprocket cornfusion

Post by barnbiketom » Tue Feb 07, 2017 7:08 pm

Hi all. long time lurker, now that I found a 66 CL77 I'm confused about the sprockets.
I need front and rear.
I HAVE ascertained the rear is 'big brakes" aka DLS and the bolt pattern measurement from mount hole to adjacent mount hole is

2 3/4 inch!!! correct?? but have yet to have any Ebayer respond with their measurements GRRR.. and they all look bigger like the 3 1/8"ones...

BUT The real problem i have is the deep/narrow spline stuff.
I cant figure if it is shallow or deep, and with Glaucoma its hard to say what i have, and what he sellers got...
Attachments

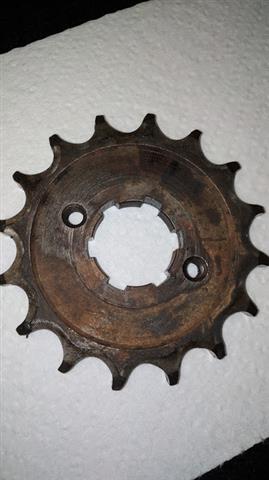

IMG_20170207_185240 (Small).jpg
IMG_20170207_185240 (Small).jpg (22.04 KiB) Viewed 3716 times
Top
LOUD MOUSE
honda305.com Member
Posts: 7817
Joined: Mon Aug 15, 2005 8:23 am
Location: KERRVILLE, TEXAS

Re: 1966 CL77 sprocket cornfusion

Post by LOUD MOUSE » Tue Feb 07, 2017 7:17 pm

The one you show is DEEP Spline.
It's warn out. .....................lm

barnbiketom wrote:Hi all. long time lurker, now that I found a 66 CL77 I'm confused about the sprockets.
I need front and rear.
I HAVE ascertained the rear is 'big brakes" aka DLS and the bolt pattern measurement from mount hole to adjacent mount hole is

2 3/4 inch!!! correct?? but have yet to have any Ebayer respond with their measurements GRRR.. and they all look bigger like the 3 1/8"ones...

BUT The real problem i have is the deep/narrow spline stuff.
I cant figure if it is shallow or deep, and with Glaucoma its hard to say what i have, and what he sellers got...
Top
User avatar
barnbiketom
honda305.com Member
Posts: 95
Joined: Tue Feb 07, 2017 6:56 pm
Location: New Wilmington PA.. NWPA

Post by barnbiketom » Tue Feb 07, 2017 7:27 pm

Thanks LM.. How can i tell on fleabay what is what? do you think they are all deep? I need a pic of a shallow one i guess to compare??
Top
LOUD MOUSE
honda305.com Member
Posts: 7817
Joined: Mon Aug 15, 2005 8:23 am
Location: KERRVILLE, TEXAS

Post by LOUD MOUSE » Tue Feb 07, 2017 7:34 pm

Trust me.
When you see a shallow spline you will know. .......................lm
barnbiketom wrote:Thanks LM.. How can i tell on fleabay what is what? do you think they are all deep? I need a pic of a shallow one i guess to compare??
Top
User avatar
barnbiketom
honda305.com Member
Posts: 95
Joined: Tue Feb 07, 2017 6:56 pm
Location: New Wilmington PA.. NWPA

Post by barnbiketom » Tue Feb 07, 2017 7:38 pm

they all look the same to me lol but I gotta trust ya!!
Top
User avatar
barnbiketom
honda305.com Member
Posts: 95
Joined: Tue Feb 07, 2017 6:56 pm
Location: New Wilmington PA.. NWPA

Post by barnbiketom » Tue Feb 07, 2017 7:42 pm

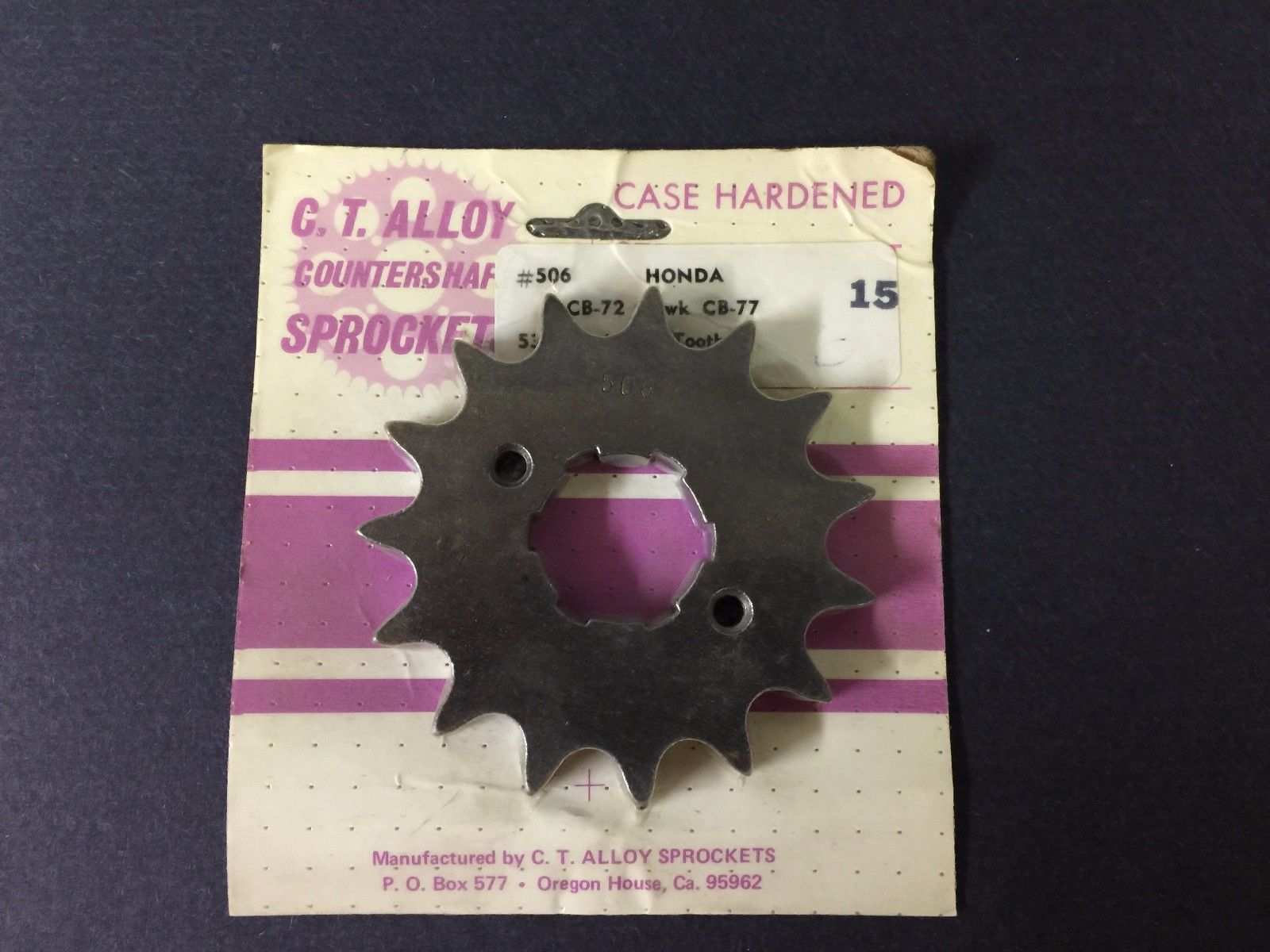

I'm thinkin this is a WINNER???? DEEP??
Attachments
Top
LOUD MOUSE
honda305.com Member
Posts: 7817
Joined: Mon Aug 15, 2005 8:23 am
Location: KERRVILLE, TEXAS

Post by LOUD MOUSE » Tue Feb 07, 2017 7:45 pm

Yep. ................lm

barnbiketom wrote:I'm thinkin this is a WINNER???? DEEP??
