Clutch problems - tried everything (I know of)

Jlovvorn · Post by **Jlovvorn** » Thu Jan 12, 2012 5:51 pm

The adjusters on the lever and the case are all the way in.

I am thinking the PO used the wrong cable or rerouted it wrong.

The cable comes out of the lever and takes a sharp down turn and goes under the tank on the same side as the lever and then down to the box.

That seems like too quick a turn. And could be the problem.

If I routed the front brake cable like that, it would lock up the brake every time I turned the bike.

Shouldn't the route be across the tree and down on the side opposite the lever? Ie, the same side as the case mounting?

mobilyte · Post by **mobilyte** » Thu Jan 12, 2012 5:56 pm

the search function is your friend...

http://www.honda305.com/forums/cb77-cab ... t8111.html

Jlovvorn · Post by **Jlovvorn** » Thu Jan 12, 2012 6:10 pm

Thanks for the reminder.

Tried a search and didn't find the answer.

Might have missed it.

But this isn't it.

mobilyte · Post by **mobilyte** » Thu Jan 12, 2012 6:57 pm

assuming you have the correct length cables, those photos do a good job of showing where the cables should be routed.

Jlovvorn · Post by **Jlovvorn** » Thu Jan 12, 2012 7:15 pm

Ok, perhaps I am am missing what your seeing, but I don't see a single picture of the clutch cable in those photos.

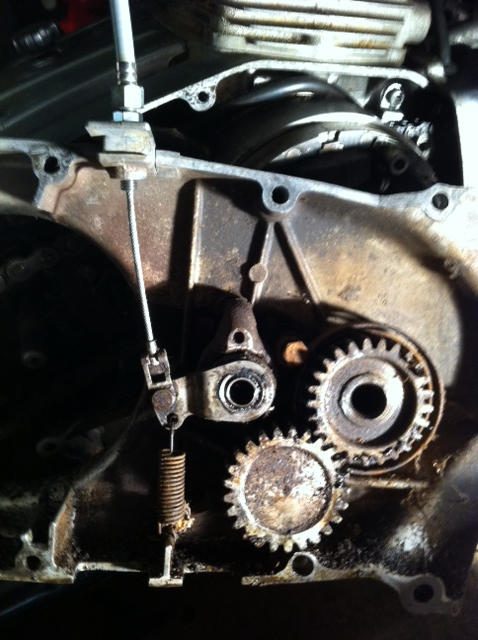

I am going to try and upload a photo here, in case it sheds any light.

Thanks everyone for the help so far.

Jlovvorn · Post by **Jlovvorn** » Thu Jan 12, 2012 7:18 pm

Two of two

LOUD MOUSE · Post by **LOUD MOUSE** » Thu Jan 12, 2012 7:22 pm

Do ya turn that big cast part?. ...lm

Jlovvorn wrote:Ok, perhaps I am am missing what your seeing, but I don't see a single picture of the clutch cable in those photos.

I am going to try and upload a photo here, in case it sheds any light.

Thanks everyone for the help so far.
