145 Main Jet

Mrburnn · Post by **Mrburnn** » Wed Jan 24, 2018 7:45 pm

Good evening everyone!

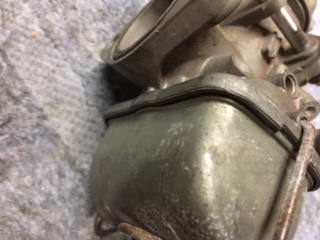

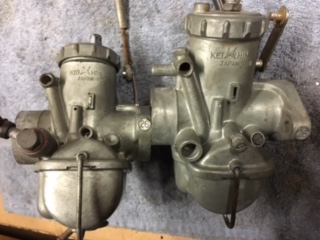

I recently acquired a set of Keihin 26 mm carburetors that contain 145 main jets and 42 slow jets. The bowl is also just a bit differently shaped than the ones removed from my '67 CL77 (contains a slight outward bend in the middle on the engine side). The needle jet is marked 24231 which I believe meant for a CB77. Would a CB77 really use a 145 jet? Also, would it be a problem to use the 145's and the 24231 needle on my CL77? These carbs are in really good condition. Pictures below.

Thanks for your interest!!
MrBurnn

LOUD MOUSE · Post by **LOUD MOUSE** » Wed Jan 24, 2018 8:00 pm

They are Round Bowl carbs.
Unless your carbs are BAD I would not use them.
For jets and needle the CL77 will run well with 135 42 and the needle should be OK. ..................lm

quote="Mrburnn"]Good evening everyone!
I recently acquired a set of Keihin 26 mm carburetors that contain 145 main jets and 42 slow jets. The bowl is also just a bit differently shaped than the ones removed from my '67 CL77 (contains a slight outward bend in the middle on the engine side). The needle jet is marked 24231 which I believe meant for a CB77. Would a CB77 really use a 145 jet? Also, would it be a problem to use the 145's and the 24231 needle on my CL77? These carbs are in really good condition. Pictures below.

Thanks for your interest!!
MrBurnn[/quote]

Mrburnn · Post by **Mrburnn** » Thu Jan 25, 2018 12:28 pm

Thank you Loud Mouse!
May I ask why not to use the round bowl carbs? My square bowl carbs are good enough to use, I am just curious as to the difference between the two types. Also, are the 145 jets too big to use on a CL77?

Thanks again!
MrBurnn

LOUD MOUSE · Post by **LOUD MOUSE** » Thu Jan 25, 2018 9:51 pm

They are not the correct issue carb for your bike and YES. ................lm

Mrburnn wrote:Thank you Loud Mouse!
May I ask why not to use the round bowl carbs? My square bowl carbs are good enough to use, I am just curious as to the difference between the two types. Also, are the 145 jets too big to use on a CL77?

Thanks again!
MrBurnn

Mrburnn · Post by **Mrburnn** » Thu Jan 25, 2018 10:12 pm

Thank you very much. Think I will clean up the round bowl carbs and sell them with the 145 jets.

Regards,
MrBurnn

LOUD MOUSE · Post by **LOUD MOUSE** » Fri Jan 26, 2018 9:14 am

Thay are for a early CB77. .................lm

Mrburnn wrote:Thank you very much. Think I will clean up the round bowl carbs and sell them with the 145 jets.

Regards,
MrBurnn
