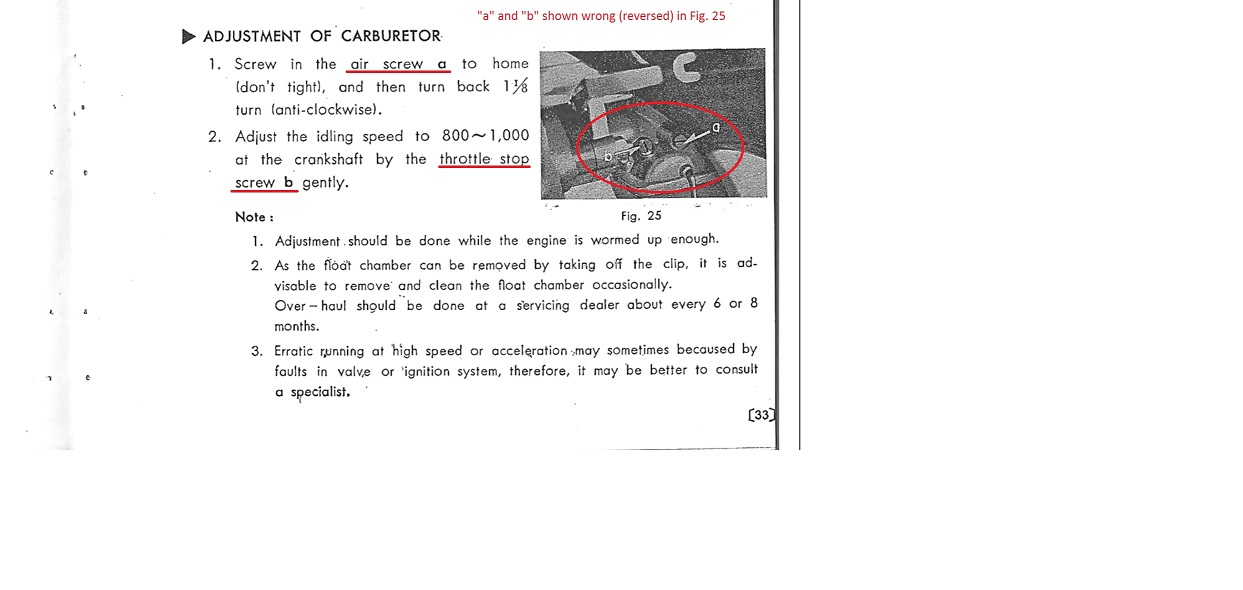

Note the Carb screws for adjusting idle mix and idle speed are shown incorrectly in the 1965 version of the Owners Manual.
They are shown reversed in the attached figure:
honda305.com Forum
Vintage Honda Owners, Restorers, Riders and Admirers
CA Dream Carb Screw Mistake in Owners Manual
CA Dream Carb Screw Mistake in Owners Manual
- Attachments
-
- CA77 Carb Adjustmrnt Screw Mistake1.jpg (109.31 KiB) Viewed 9612 times
66 dream, 78 cb750k, 02fz1, 09 wing
Re: CA Dream Carb Screw Mistake in Owners Manual
Hello, I'm new to thr forum and recently purchased a 1964 Dream. Where do you get an "Owners manual"?
